3DP2BLROD40A-3D Printable Iris mechanism 3Dプリントモデル

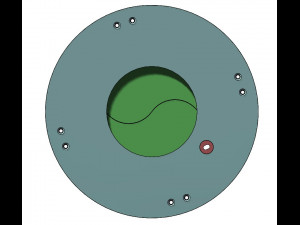

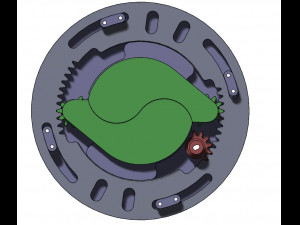

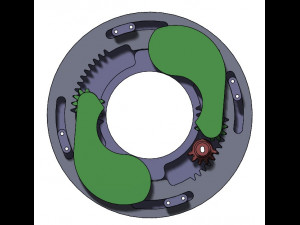

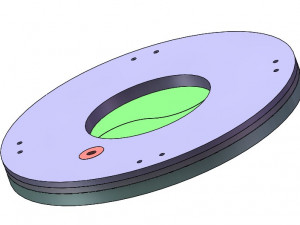

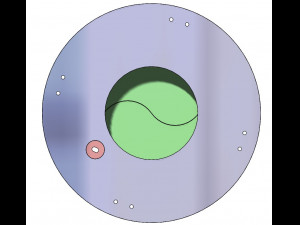

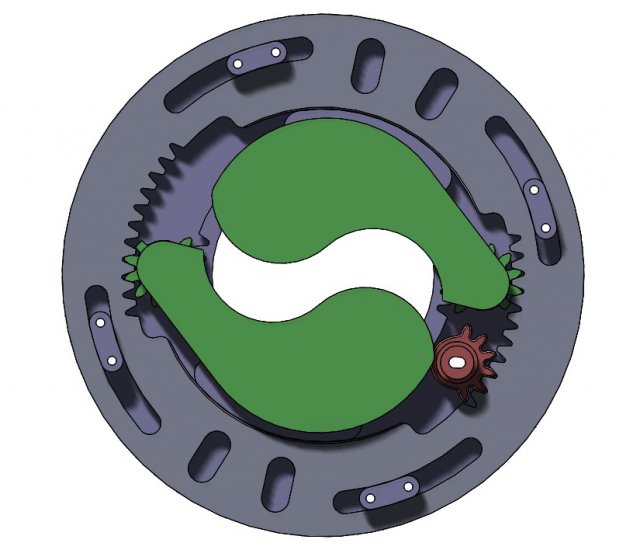

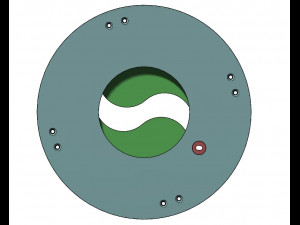

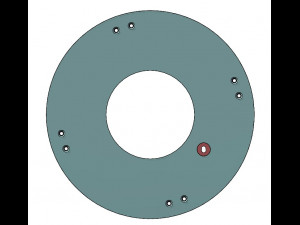

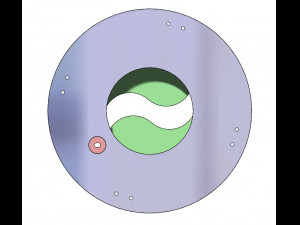

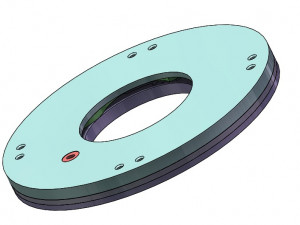

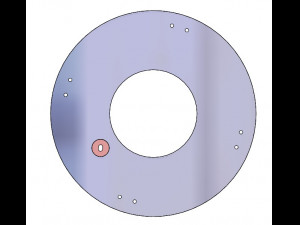

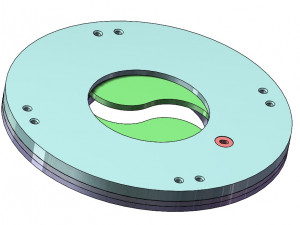

Iris mechanism or taiji mechanism designed for 3d print. There are 2 leaves. Then you rotate the "Drive Part"or the middle plate, the center hole can open or close gradually. The center hole is diameter 40mm, the outer size is diameter 94mm and thickness is 8.2mm. To assemble the parts togther,some M2 screws are needed. Parts are designed for 3d printing. It is best to use resin material when 3d printing. And you may need to sand some parts due to the 3d printing quality.
Parts should be printed separately and then assembled together.
