3D MODEL DESCRIPTION

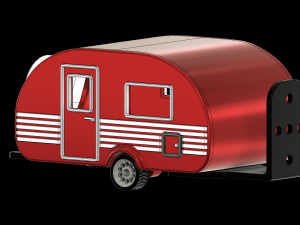

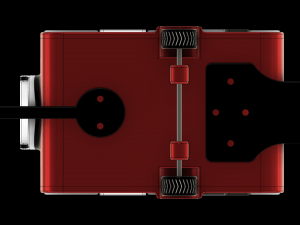

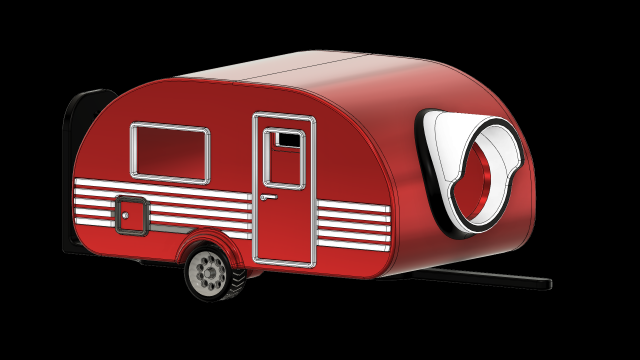

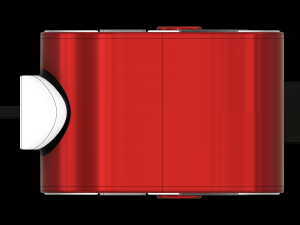

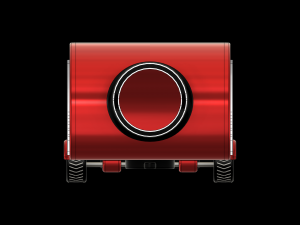

Hello friend, I present you another house for the little birds that inhabit our garden. This model was created according to my ideas, with a more solid structure and with really right and excellent dimensions, the model can also be printed with print surface 220x220, the dimensions of the caravan frame are 200mm x 120mm , and the entrance hole for the bird, is 50mm, reflects the standard of almost all the birds.

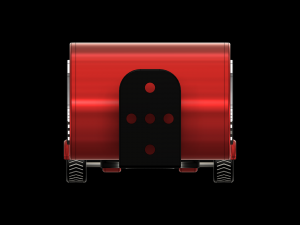

The holes for fixing are standard, for the caravan the screws to use are 5mm thick, instead for fixing the bracket to the wall, or shaft or where you like, is 8mm.

Print yourself a shelter for your birds, give a nest where you can procreate, without being disturbed by other birds.

It really prints very easily, the only media you will need to use are only for the frame, and they are also few, you do not need supports.

I also want to remind you, that all my designs are interlocking, and have a tolerance of 0.50mm "standard tolerance of all printers", if you like many others do not know what tolerance your printer has, I suggest you download my tolerance test, It’s on my profile.

As always I want to thank you for spending your time in viewing my project, and if you find it interesting, I suggest you take a look at my profile cults, because you will find a lot of interesting projects, And I’m sure you’ll find something for you, and I also remind you to leave me a like if you appreciate my work.

Good press friend

3D PRINTING SETTINGS
Layer 0.20
Temp. 205° / 50° PLA -- 230° / 65° PETG
Infill 15%
Top and Bottom Layer 4
Perimeter Layer 3
Speed 50/60 mm/s
