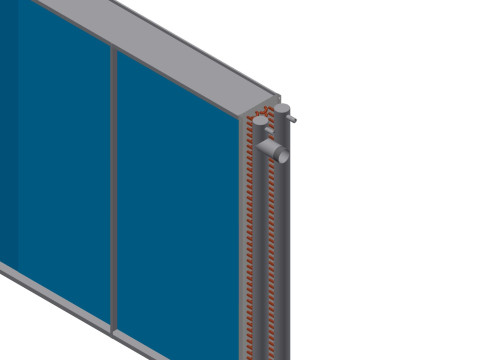

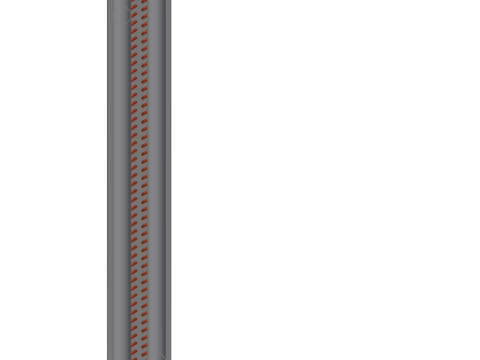

Cooling Coil 3Dモデル

The coil in air handling units is one of the essential components in heating, ventilation, and air conditioning (HVAC) systems. These coils function as heat exchangers, responsible for transferring heat between air and other fluids (such as hot or cold water).

Types of Coils:

1. Hot Coils: Typically operate with hot water and are used to heat air during cold seasons.
2. Cold Coils: Operate with cold water and are used to cool air during warm seasons.

Features and Functionality:

• Heat Transfer: Coils transfer heat by creating a contact surface between the air and the fluid.
• Increased Efficiency: The optimized design of these coils contributes to the overall efficiency of HVAC systems.
• Material and Structure: They are usually made from copper or aluminum tubes and feature fins to increase the contact surface area.

Applications:

• HVAC Systems: Used in air handling units and chillers for heating and cooling.
• Industrial: Used in industrial processes for temperature control and ventilation.

Important Notes:

• Maintenance: Regular cleaning and maintenance of coils are essential to preserve efficiency and prevent failure.
• Proper Selection: Choosing the right type and size of coil based on the system's needs and environment is crucial.
