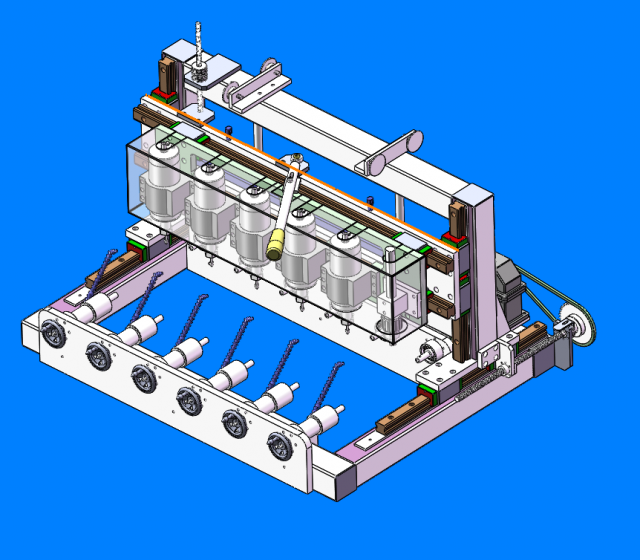

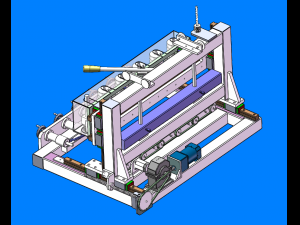

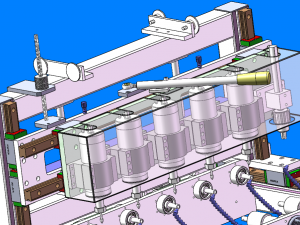

copy engraving machine drawings including general assembly drawings, standard parts drawings, welcome to download production! this profiling engraving machine is used in woodworking machinery and stone machinery. the machine is mainly composed of main body, worktable, longitudinal support, longitudinal slide, transverse support, transverse slide, lifter, sample gauge machine and engraving machine. the worktable is installed on the main body, the longitudinal support is installed above both sides of the main body, the longitudinal slide way is installed on the longitudinal support, the transverse support is installed on the longitudinal slide, the transverse slide is installed on the transverse support, the lifting box is fixed on the transverse sliding seat, and the lifting slide is fixed on the lifting box. the lifting slide seat is arranged on the lifting slide way, on which the lifting main body is fixed, and the engraving machine and the sample gauge machine are fixed at both ends of the lifting main body. when the machine is working, the sample gauge head of the sample gauge machine can run vertically, horizontally and up and down simultaneously through the die. the engraving cutter head of the engraving machine can carve various complicated three-dimensional figures on the machined parts. the machine has the advantages of low cost, easy operation and easy maintenance. 印刷　準備: いいえ
