double axle shifting load fine tuning platform

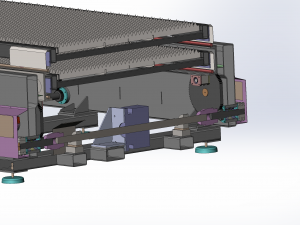

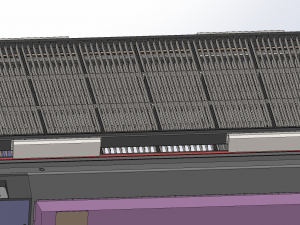

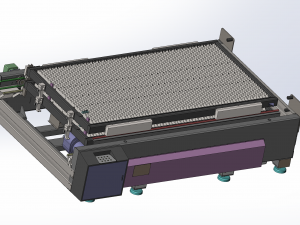

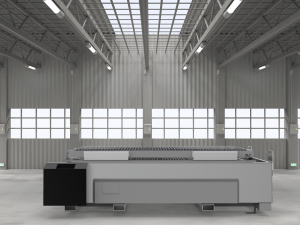

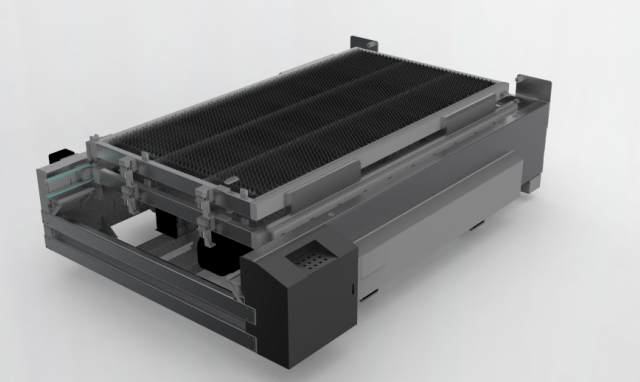

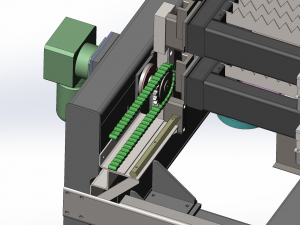

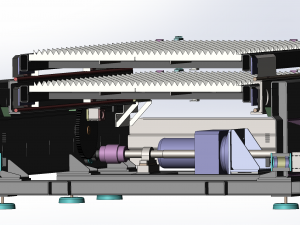

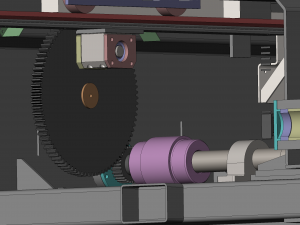

the platform is composed of a fine tuning mobile platform mechanism by a lead screw and a slide rail mechanism. the platform mechanism includes two axis moving mechanisms, one of which is z-axis moving mechanism and the other is y-axis moving mechanism, which can be used as a fine tuning mechanism for displacement. it is a good reference model.
**************************************
polygons: 1988991
vertice:3840242
files format contains
-solidworks 2017
-step
-iges
-3ds
-fbx
-3dmax
- and other formats

**************************************

if you like,you can buy for you to get this models or if you have any questions also you can email to me.
designed with solidworks 2017, render with keyshot
