House in L form in N gauge 3Dプリントモデル

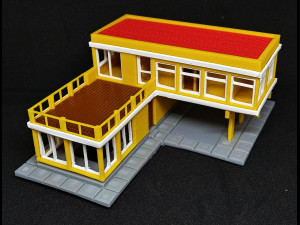

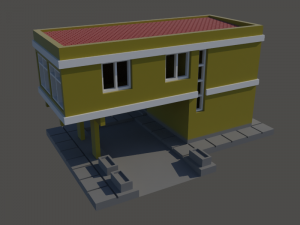

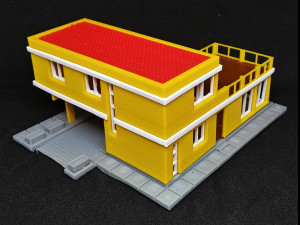

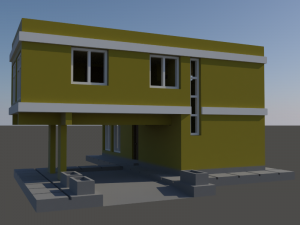

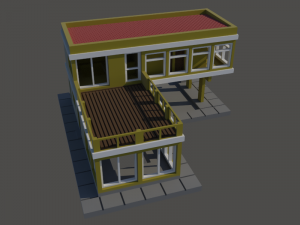

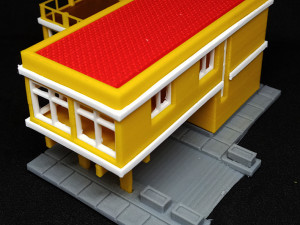

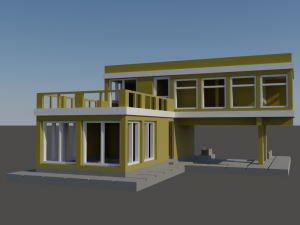

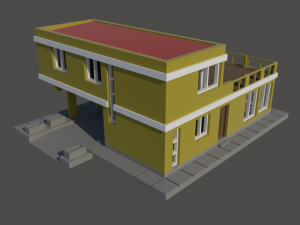

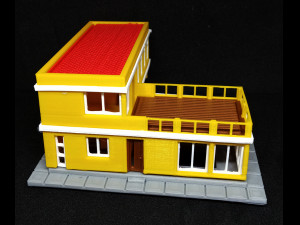

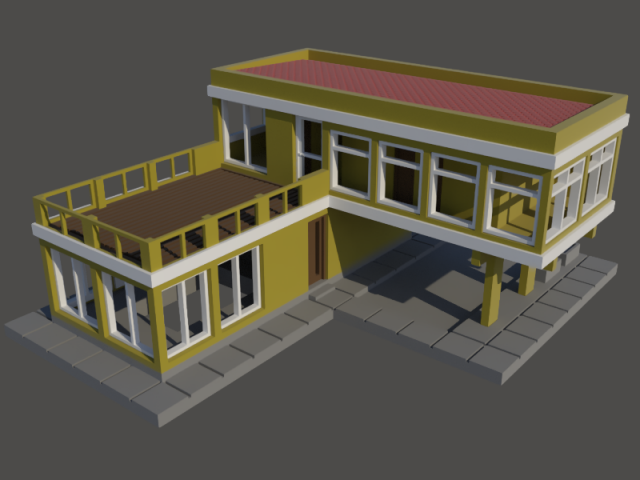

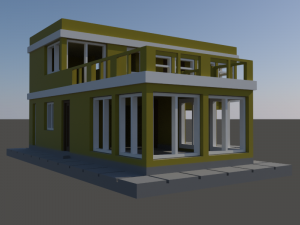

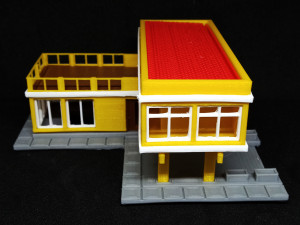

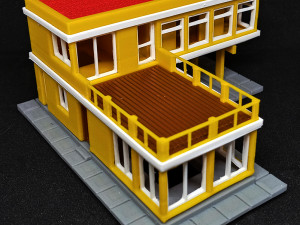

L-shaped house. In this case it contains a first and second floor next to a visible staircase, in addition there is a hole in the wall of the staircase designed to pass lighting elements to the ceiling in addition to having independent doors and windows.

The scale is 1:150 which makes it suitable for electric model trains in N scale. It is made up of several STL files.

Dimensions:

Base measurements: 10.4 x 8.8 cm.
House measurements: 8 x 8 x 4.5 cm.

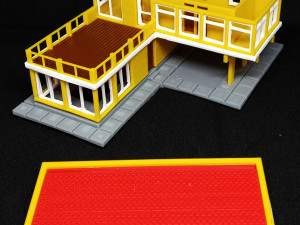

There are two versions of the structure in STL: complete (to print everything directly) or by floors. Print only one version according to taste. In the case of the ladder, both must be printed directly. The support and the ceiling go together in a single STL file, since this can be taken out to place lighting.

In the full version of the structure, it is recommended to print with supports and preferably in PLA material.

Recommended colors: Structure in yellow, roof in red, doors and terrace slab in brown, windows and decorations in white and base in gray.

Optimized for printers of any type.

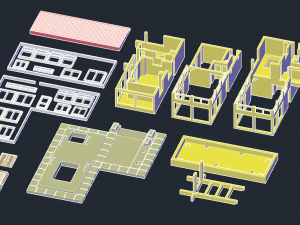

The categories of each piece are in different STL files.

Although the holes are designed for the correct insertion of windows and doors, the highest quality should still be used to print the latter, and the holes may need to be sanded or polished if necessary.

Glue must be used to attach some parts such as windows, doors and roof, preferably UHU.

It does not include glass transparency, it is suggested to use mica or acetate.

3D PRINTING PARAMETERS
Extrusion temperature: 195-200º
Material: Any, but preferably PLA
Bed temperature: 55-60º
Do you require support?: Yes
