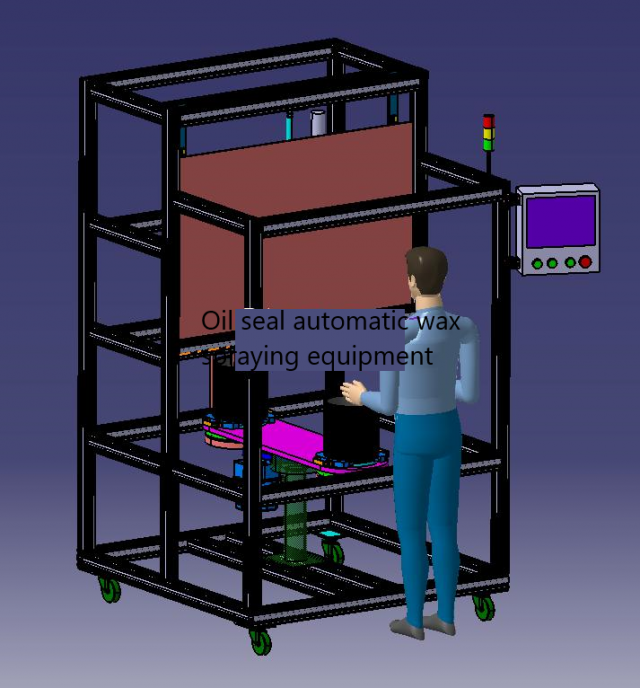

oil seal automatic wax spraying equipment 3Dモデル

automatic coating tooling equipment is divided into manual and automatic control modes. let's introduce these two control modes step by step. 1. in the manual control mode, pull the automatic / manual knob of the front operation panel box to the manual side, and the equipment can be operated manually on the touch screen manual interface. press the button to execute the action. release the button to end the action. 2. in the automatic control mode, the automatic / manual operation of the front operation box panel is pulled to the automatic side, and the equipment can be operated automatically. (after pressing the green mushroom head button on the right side, the workpiece will be clamped. if the workpiece is placed in order and clamped in place), press the button of both hands, the buzzer will ring for 2 seconds, and the equipment can automatically run spraying. (if the workpiece is not placed in order, press the green button on the left side for 1 second, and then release it. after placing it, press the right hand clamping button, and after clamping in place), press the two hand button, and the buzzer will ring for 2 seconds. the equipment can spray automatically. 印刷　準備: いいえ
